Fuji and GLE present the Enviro Evolution
Features:
Electromechanical Safety Gear
1.2 m/s variable speed technology
100 hours to install a 4 stop 1000 Kg Elevator.
Smart Tech LCD Display.
Specifications
MINIMUM SPEED: 1.2 m/s
MINIMUM HEADROOM: 3400 mm
PIT DEPTH: 1050 mm
ROPING: 2:1
CAR HEIGHT: 2200mm
1000 Kg
| Entrances | Capacity | Car | Shaft | Door Type | ||
| (Kg) | Width (A) | Depth(B) | Width (A) | Depth(B) | (Wittur Augusta) | |
| Single Entry/ Through Car | 1000 Kg | 1100 | 2100 | 1950 | 2375 | 2 Panel Center Opening 900 mm |
| 1600 | 1400 | 2100 | 1675 | |||
| 1400 | 1600 | 1900 | 1875 | 2 Panel side opening 900 mm | ||
| 1400 | 1600 | 2000 | 1900 | |||
750 Kg
| Entrances | Capacity | Car | Shaft | Door Type | ||
| (Kg) | Width (A) | Depth(B) | Width (A) | Depth(B) | (Wittur Augusta) | |
| Single Entry/ Through car | 750 Kg | 1100 | 1600 | 1600 | 1875 | 2 Panel Side Opening 900 mm |
| 1300 | 1400 | 1800 | 1675 | |||
| 1100 | 1600 | 1950 | 1850 | 2 Panel Center Opening 900 mm | ||
| 1300 | 1400 | 1950 | 1675 | |||
630 Kg
| Entrances | Capacity | Car | Shaft | Door Type | ||
| (Kg) | Width (A) | Depth(B) | Width (A) | Depth(B) | (Wittur Augusta) | |
| Single Entry/ Through car | 630 Kg | 1100 | 1400 | 1600 | 1650 | 2 Panel Side Opening 800mm |
| 1150 | 1350 | 1650 | 1600 | |||
| 1100 | 1400 | 1600 | 1650 | 2 Panel Side Opening 900mm | ||
| 1050 | 1450 | 1750 | 1740 | |||
| 1100 | 1400 | 1750 | 1620 | 2 Panel Center Opening 800mm | ||
| 1100 | 1400 | 1750 | 1690 | |||
| 1100 | 1400 | 1925 | 1620 | 2 Panel Center Opening 900 mm | ||
| 1150 | 1350 | 1925 | 1640 | |||
450 Kg
| Entrances | Capacity | Car | Shaft | Door Type | |||
| (Kg) | Width (A) | Depth(B) | Width (A) | Depth(B) | (Wittur Augusta) | ||
| Single Entry/ Through car | 450 Kg | 950 | 1300 | 1450 | 1550 | 2 Panel Side Opening 800mm | |
| 1000 | 1200 | 1500 | 1450 | ||||
| 1000 | 1250 | 1500 | 1570 | ||||
| 1000 | 1250 | 1500 | 1620 | ||||
| 1000 | 1300 | 1500 | 1670 | ||||
| 1050 | 1200 | 1550 | 1450 | 2 Panel Center Opening 800mm | |||
| 1000 | 1300 | 1750 | 1520 | ||||
| 1000 | 1300 | 1750 | 1590 | ||||
| 1050 | 1200 | 1750 | 1420 | ||||
Functions
Direct approach
Maximum no of calls
Anti-vandal mode.
Multiplex Control
Limited out of service
Safety edge.
Self-diagnosing safety edge
Overload function
Emergency ceiling light in car
Door closing push button
Nudge
Homing mode
Fire service controls
Car light and fan power saver
Service control keyswitch
Departure gong, ascending and descending tones
Voice synthesiser
Emergency rescue
Interior Selections
Download our Brochure

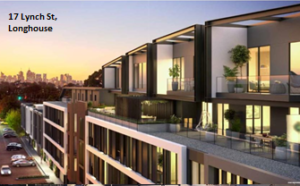

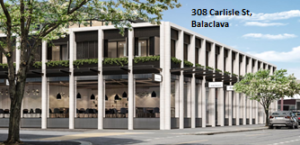

Our Installations
