Fuji Ascend Elevator
Features:
Up to 20 Stops and 2000 Kg capacity
VVVF Gearless MRL Traction machine
Reliable, Robust and Affordable
Fully Customisable Options
Specifications
MAXIMUM OPERATIONAL SPEED: 3.5 m/s
MINIMUM HEADROOM: 4000 mm
PIT DEPTH: 1400 mm
ROPING: 2:1
CAR HEIGHT: 2300mm
630 Kg
| Entrances | Capacity | Car | Shaft | Door Type | ||
| (Kg) | Width (A) | Depth(B) | Width (A) | Depth(B) | (Wittur Augusta) | |
| Single Entry/ Through car | 630 Kg | 1100 | 1400 | 1600 | 1650 | 2 Panel Side Opening 800mm |
| 1150 | 1350 | 1650 | 1600 | |||
| 1100 | 1400 | 1600 | 1650 | 2 Panel Side Opening 900mm | ||
| 1050 | 1450 | 1750 | 1740 | |||
| 1100 | 1400 | 1750 | 1620 | 2 Panel Center Opening 800mm | ||
| 1100 | 1400 | 1750 | 1690 | |||
| 1100 | 1400 | 1925 | 1620 | 2 Panel Center Opening 900 mm | ||
| 1150 | 1350 | 1925 | 1640 | |||
1000 Kg
| Entrances | Capacity | Car | Shaft | Door Type | ||||
| (Kg) | Width (A) | Depth(B) | Height (H) | Width (A) | Depth(B) | Width | Height | |
| Single Entry/ Through Car | 1000 Kg | 1400 | 1700 | 2300 | 2200 | 2150 | 1000 | 2100 |
| 1400 | 1600 | 2300 | 2200 | 2000 | 1000 | 2100 | ||
| 1250 | 1800 | 2300 | 2200 | 2200 | 900 | 2100 | ||
| 1200 | 1600 | 2400 | 2000 | 1950 | 900 | 2100 | ||
| 1100 | 2000 | 2200 | 1840 | 2465 | 900 | 2100 | ||
| 1200 | 2000 | 2200 | 2350 | 2500 | 900 | 2100 | ||
| 1250 | 1450 | 2400 | 2000 | 2000 | 900 | 2100 | ||
1275 Kg
| Entrances | Capacity | Car | Shaft | Door Type | ||||
| (Kg) | Width (A) | Depth(B) | Height (H) | Width (A) | Depth(B) | Width | Height | |
| Single Entry/ Through Car |
1275 Kg
Duplex | 1200 | 1800 | 2400 | 2000 | 2200 | 900 | 2100 |
| 1400 | 2000 | 2400 | 2180 | 2700 | 1000 | 2100 | ||
| 1400 | 2000 | 2700 | 2550 | 2550 | 1100 | 2400 | ||
| 1450 | 1800 | 2300 | 2400 | 2500 | 1000 | 2100 | ||
| 1700 | 1600 | 2400 | 2850 | 2300 | 1000 | 2100 | ||
| 1450 | 2000 | 2200 | 4810 | 2500 | 900 | 2100 | ||
| 1450 | 1800 | 2300 | 5050 | 2500 | 900 | 2100 | ||
1600 Kg
| Entrances | Capacity | Car | Shaft | Door Type | ||||
| (Kg) | Width (A) | Depth(B) | Height (H) | Width (A) | Depth(B) | Width | Height | |
| Single Entry/ Through Car | 1600 Kg | 1300 | 2400 | 2300 | 2400 | 2800 | 1000 | 2100 |
| 1400 | 2150 | 2400 | 2500 | 2550 | 1000 | 2200 | ||
| 1650 | 2000 | 2400 | 2700 | 2500 | 1000 | 2100 | ||
Functions
Direct approach
Maximum no of calls
Anti-vandal mode.
Multiplex Control
Limited out of service
Safety edge.
Self-diagnosing safety edge
Overload function
Emergency ceiling light in car
Door closing push button
Nudge
Homing mode
Fire service controls
Car light and fan power saver
Service control keyswitch
Departure gong, ascending and descending tones
Voice synthesiser
Emergency rescue

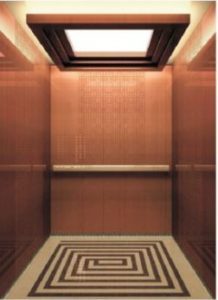

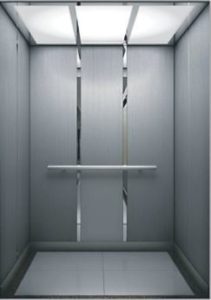

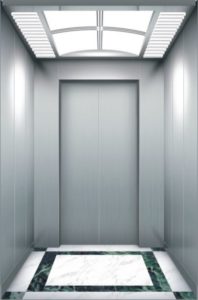

Interior Selections
Download Our Brochure

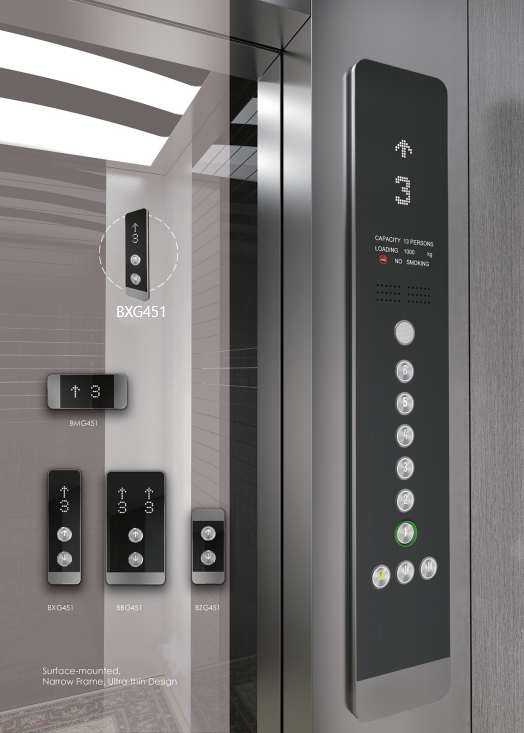

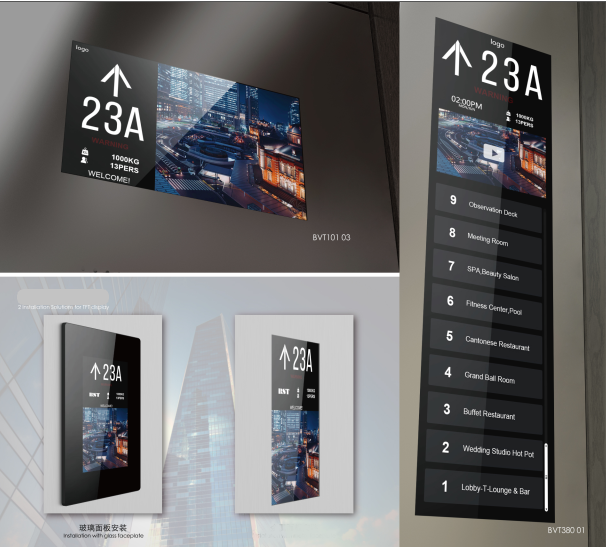

Landing Stations

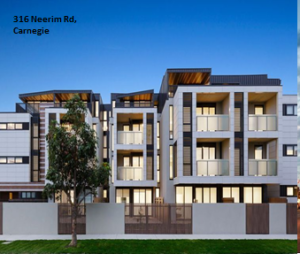

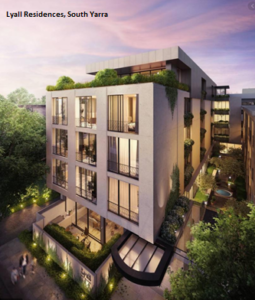

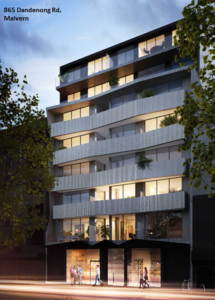

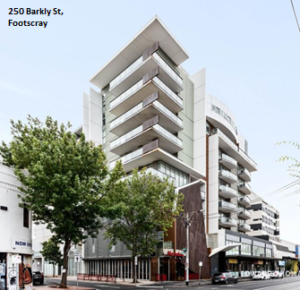

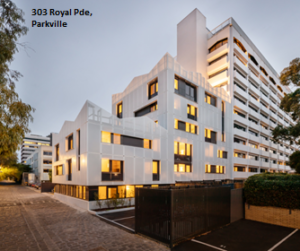

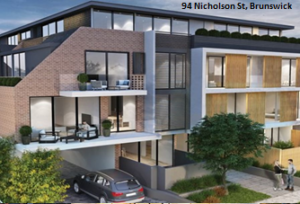

Our Portfolio
